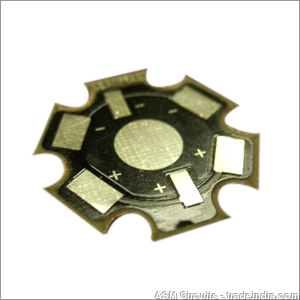

Metal Core PCB Board

Metal Core PCB Board
Metal Core PCB Board
Product Code : ASM_06
Product Description
 Metal core pcb board

Thermal Management PCBs are necessary for high power LED applications due to the amount of heat the Light Emitting Diodes are capable of generating. ASM provides high-quality Metal Core PCB manufacturing, production and prototype, with advanced technologies that include aluminum core, heavy copper thickness up to 120 microns.

MCPCB Fabrication for LED Applications

The bare board is the real estate that sustains electronic components such as LEDs. PCBs containting a metal core dissipate heat in LED applications. In addition, the MCPCB provides a much lower thermal resistance for light emitting diode applications.

Thermal Management LED PCB Design Specifications

In LED PWB design and fabrication, the designer is always conscious of price and manufacturability. We can advise designers on material specifications for LED PCB fabrication by helping designers define their needs so that they can choose specifications that best suit the designer's purpose and needs.

We understand that you are a regular user of MCPCBs, therefore, we request you to register our name in the list of your regular suppliers. Kindly write for any clarification and place up your valuable regular order. We assure you that our quality and the services will be to your valued satisfaction. Please feel free for any kind of the correspondence.

MCPCB With:
  • PSM Finish, Tin/Gold Plating (Optional)
  • Die Cutting in any shape
  • Panel with multiple PCBs (Easily Separatable)
  • Black/White maskings with good thermal resistance
  • Copper 35 Microns/70 Microns
  • Aluminium with 1.6mm/2/0mm Thickness
Layer Thermally conductive and elect. insulative

Melting Point
Range
oC
CTE
10-6 K-1
(20/100
oC)
Specific Heat Capacity J/kg-K
(0/100
oC)
Thermal Conductivity
W/m-K
(20 oC)
643/657
23.6
904
222

Conductance
%IACS
(20 oC)
Resistance
10-3 ©-3
(20 oC)
57
29.2

We can supply to meet urgencies within 24 hrs
